Communication in Interior Design: Floor Plans

In the realm of interior design, the blueprint of a space serves as its foundational narrative, communicating the silent language of spatial arrangement and functional aesthetics.

Floor plans, as these blueprints are commonly known, are the first chapter of a design story that determines the flow, functionality, and future of an interior space.

This post explores the transformative power of floor plans in shaping the interiors that surround us, reflecting on their crucial role in the design process and execution.

The Vital Role of Floor Plans

Technical floor plan of a living room, hand drawn following a site survey.

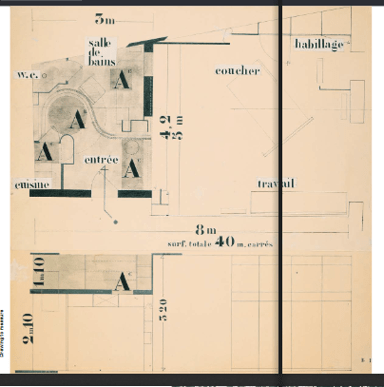

At its core, a floor plan is a scaled diagram of a room or building viewed from above. It serves multiple critical functions in interior design, from facilitating a deeper understanding of space to guiding the actual construction process.

Spatial Understanding

Floor plans allow designers and clients to grasp the layout and proportions of a space comprehensively. This understanding is pivotal for assessing potential furniture arrangements, traffic flow, and the overall usability of an area. It ensures that the space will meet the client’s needs while maximising functionality and aesthetic appeal.

Functional Planning

Effective floor plans go beyond aesthetics, addressing the practical aspects of living and working environments. They help ensure that every square foot of space is utilised efficiently, supporting the intended functions of the area.

Whether it’s the seamless integration of a kitchen and dining area or the strategic placement of windows for optimal natural light, floor plans lay the groundwork for these crucial elements.

Communication and Collaboration

Fallingwater House by Frank Lloyd Wright.

Floor plans are indispensable communication tools that bridge the gap between architects, designers, contractors, and clients. By providing a clear and detailed view of the project, these plans ensure that all parties have a shared understanding of the scope and details of the design, reducing the likelihood of costly misunderstandings and errors during construction.

Project Management

In the broader scope of project management, floor plans are essential for scheduling, logistics, and resource allocation. They help in coordinating the various trades and professionals involved in a project, from electrical and plumbing to carpentry and painting, ensuring that the construction phase progresses smoothly and efficiently.

Crafting Detailed Floor Plans

Technical floor plan of a living room with furniture layout.

The creation of a detailed floor plan is both an art and a science, involving several key steps:

Tools and Materials

For Hand-Drawn Floor Plans:

Drafting table: Provides a stable, flat surface for drawing.

Architectural scale ruler: Essential for creating scaled drawings.

Adjustable triangles: For drawing angles accurately.

Drafting pens and pencils: For clean, precise lines.

Tracing paper and vellum: For revisions and final drafts.

Erasers and masking tape: For adjustments and securing paper.

For CAD Floor Plans:

Computer and CAD software: Programs like AutoCAD, SketchUp, or Revit.

High-resolution monitor: To clearly see details.

Printer or plotter: For printing large-scale drawings.

Steps to Create Floor Plans

1. Gather Information:

Requirements: Understand the client’s needs, the number of rooms, function, and furniture requirements.

Measurements: If an existing space, take detailed measurements of the building or room, including doors, windows, and structural elements.

2. Start with a Rough Sketch (Both Methods):

Hand sketching: Use light pencil strokes to outline basic room layouts and essential elements.

CAD: Set up the initial file with layers, units, and drawing limits. Start by blocking out basic room shapes based on the measurements.

3. Setting Up Your Drawing:

Hand-drawn: Place a clean sheet of vellum over the sketch. Use a T-square and drafting triangles to refine the layout with precise, clean lines.

CAD: Ensure that all elements are on the correct layers and that the drawing adheres to the set scales and units.

4. Detail the Structural Elements:

Walls: Draw walls to scale, indicating thickness based on building codes or client specifications.

Doors and windows: Insert accurate symbols and sizes as per design requirements.

5. Add Interior Details:

Fixtures: Include built-in cabinets, appliances, and bathroom fixtures.

Furniture: Place furniture to show layout functionality. Ensure clear circulation paths.

6. Annotate and Dimension:

Room labels and sizes: Clearly label each room and include dimensions.

Notes: Add construction notes or special instructions relevant to the design.

7. Apply Textures and Patterns (CAD):

Materials: Apply patterns and textures to represent different floorings, wall coverings, or other material specifications.

8. Review and Adjust:

Self-review: Check the plan for compliance with design intentions and practical functionality.

Peer and client review: Have the plans reviewed by peers for technical accuracy and by the client for approval.

9. Finalize the Drawing:

Hand-drawn: Trace the final plan onto a new piece of vellum with professional-grade ink.

CAD: Prepare the file for final printing, adjusting line weights and styles for clarity.

Enhancing Your Floor Plans

Practice regularly: Develop your spatial planning and technical drawing skills through continual practice.

Stay updated: Keep abreast of new CAD software updates or hand-drawing techniques.

Build a diverse portfolio: Showcase a variety of floor plan projects to demonstrate versatility.

Digital Tools Enhancing Floor Plan Design

Cameron Diaz’s West Village Condo by Kelly Wearstler. Courtesy of Dwell.

The evolution of digital technology has significantly enhanced the precision and flexibility of creating floor plans. Software like AutoCAD, SketchUp, and Revit allows for intricate and accurate floor plans that can be easily adjusted as the design evolves.

These tools support a dynamic design process, enabling designers to experiment with layouts in real-time and make decisions that are informed by immediate visual feedback.

Conclusion

Floor plans are the unsung heroes of interior design, fundamental in shaping the way spaces function and feel. As we continue to explore and embrace new technologies, the creation and utilisation of floor plans remain a critical skill in the arsenal of interior designers, architects, and builders alike.

Next week, we’ll discuss another technical drawing type: Elevations.

See you then!

JG x
